ADLink ACL-7130, 16-CH Isolated DI &16-CH Isolated DO Card

(0) No Reviews yet
$129.00
QuantityPrice
1 – 24$129.00
25 – 49$124.00
50 – 99$121.00
100 +$118.00
SKU: 1ACL713
MPN: ACL-7130
ITEM WEIGHT: 2
Specs: View

On Back Order

Details

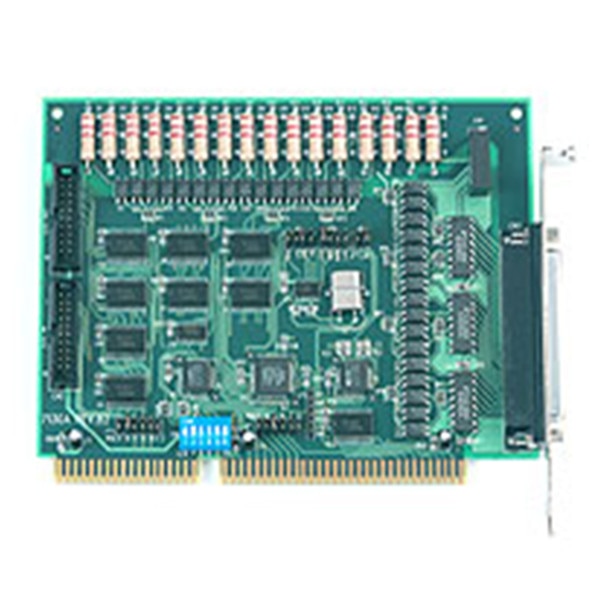

ADLink ACL-7130, 16-CH Isolated DI &16-CH Isolated DO Card. 16-CH isolated digital inputs and 16-CH isolated digital outputs, 16-CH TTL digital inputs and 16-CH TTL digital outputs, Non-polarity digital input range (isolated digital inputs), 2500 VRMS optical isolation, Sink current up to 500 mA on each isolated output, One 8254 chip on board which provide a set of cascaded timers and one independent counter, Two external interrupt sources, Compact, half-size PCB. PN: ACL-7130
