Details

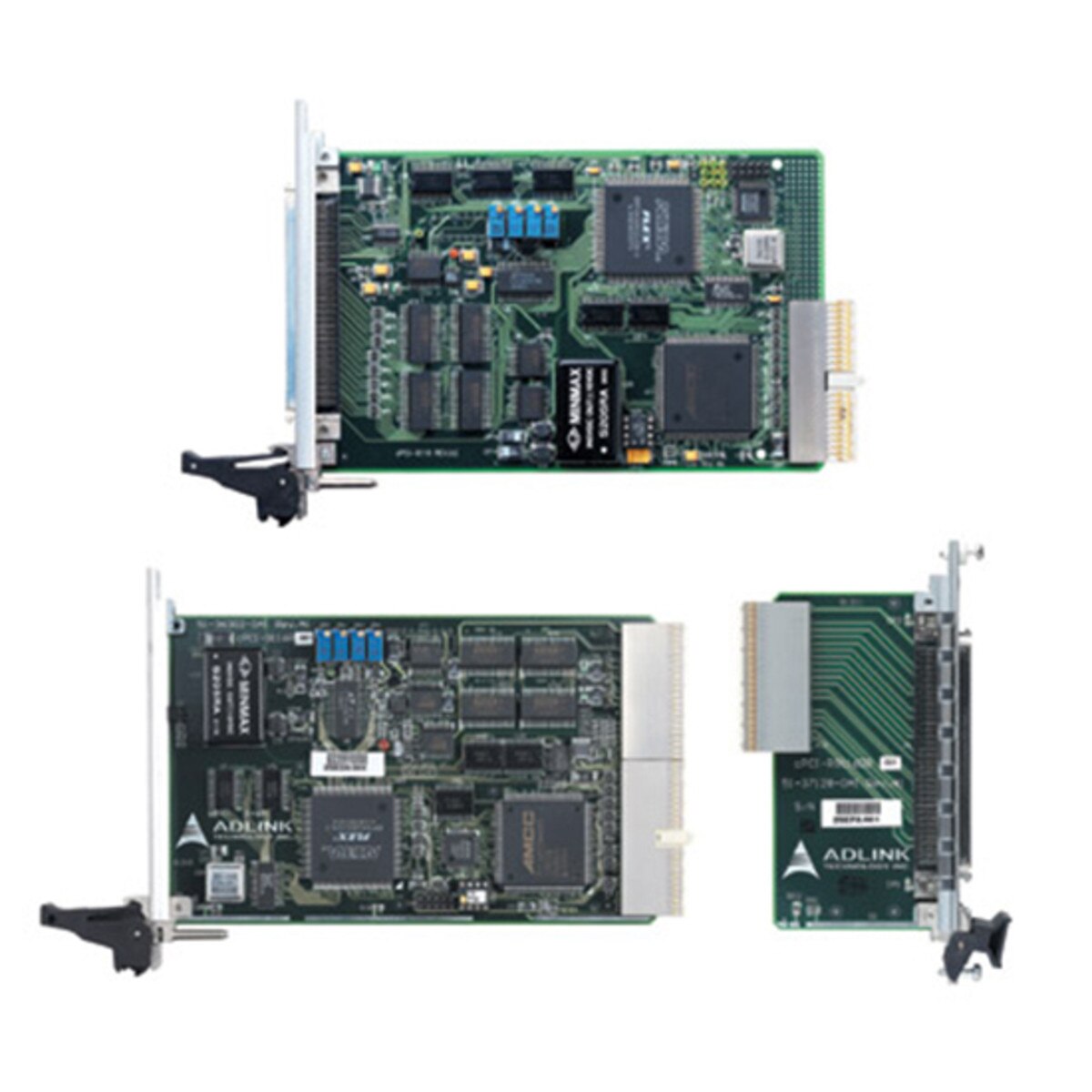

ADLINK cPCI-9116 multi-function DAQ module features PICMG 2.0 Rev 2.1, 16-bit A/D and sampling rate up to 250kS/s, 64-CH single-ended or 32-CH differential input, On-board 1k-sample A/D FIFO, Programmable gains of x1, x2, x4, x8, 512-configuration channel-gain queue, Bus-mastering DMA for analog inputs, 8-CH TTL digital inputs and 8-CH TTL digital outputs. MPN: cPCI-9116 Operating Systems Supported: Windows 7/Vista/XP/2000/2003 Server, Linux, Windows CE (call for availability). Recommended Software: AD-Logger, VB.NET/VC.NET/VB/VC++/BCB/Delphi, DAQBench. Driver Support: DAQPilot for Windows, DAQPilot for LabVIEWTM, DAQ-MTLB for MATLAB®, PCIS-DASK for Windows, PCIS-DASK/X for Linux.
