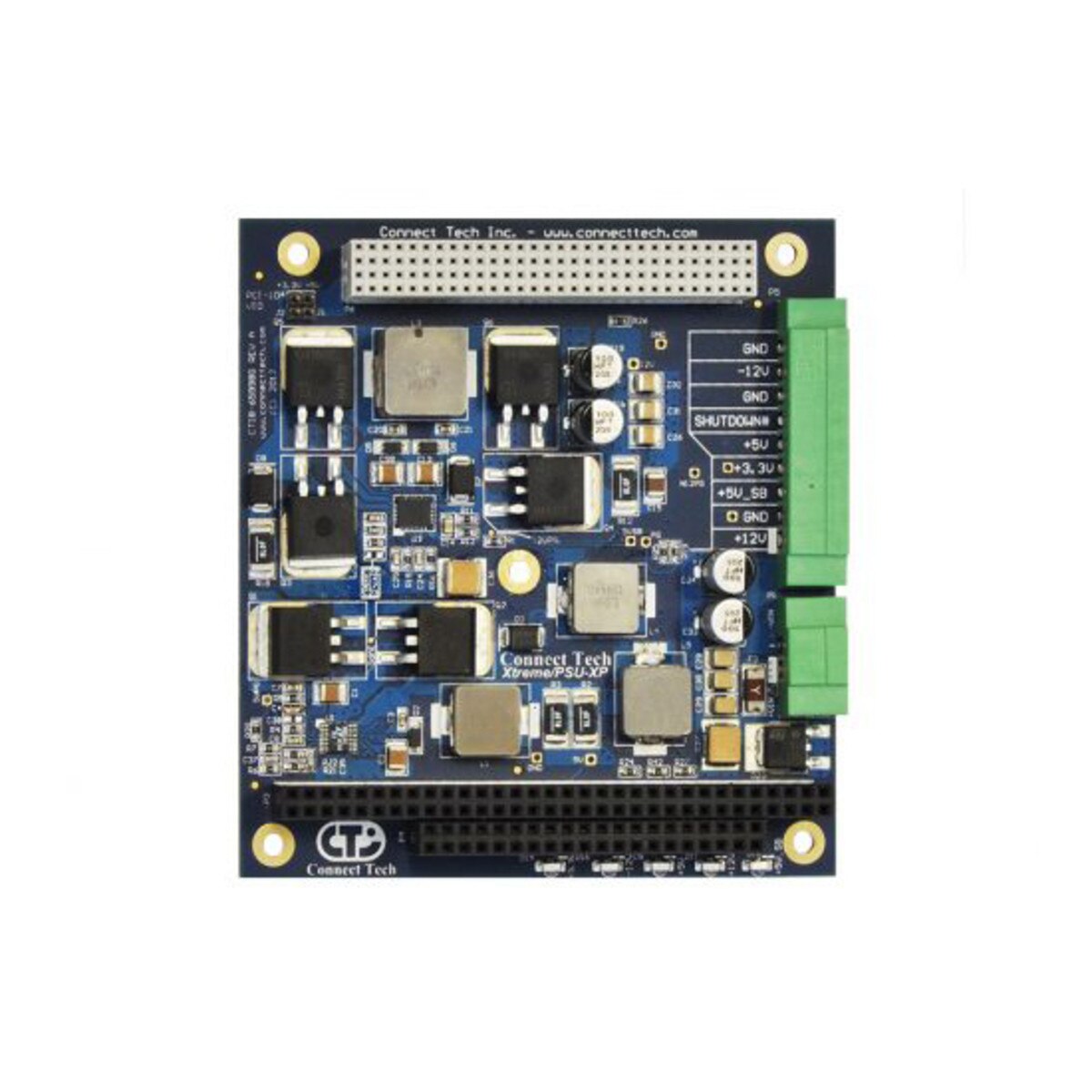

Connect Tech Xtreme/PSU-XP Power Supply, PC/104 Build
Details
Connect Tech Xtreme/PSU-XP Power Supply, PC/104 Build; +5V @ 10A, +3.3V @10A,+12V @ 5A, -12V @0.5A, +5VSB @ 1A; +5V, +3.3V, +12V and -12V connected to PC/104 Bus connector.
MPN: PSG008
*MOQ may apply
*Call for pricing
- Input Voltage Range: +6V to +36V DC
- Total Output Power: 154W
- Output Voltages: +3.3V@10 A, +5V @ 10A, +12V @ 5A, -12V @ 0.5A, +5V-Standby @ 1A
- Operating Temperature: -40°C to +85°C (-40°F to 185°F)
- Fully meets the PC/104 component height requirements
- No extra stacking extenders needed
- Other PC/104 boards can be stacked directly on top or below the Xtreme/PSG
- Uses latest generation highest efficiency power controllers, inductors, and MOSFETs
- Oversized MOSFETs for improved thermal performance (No Heat sinking needed)
