CTI Xtreme/PSU-XP Power Supply, PC/104-Plus Build

(0) No Reviews yet
$270.00
QuantityPrice
1 – 9$270.00
10 – 24$267.00
25 – 49$261.00
50 +$258.00
SKU: 1CPSG07
MPN: PSG007
MANUFACTURER COUNTRY: Canada
ITEM WEIGHT: 1
Specs: View

On Back Order

Details

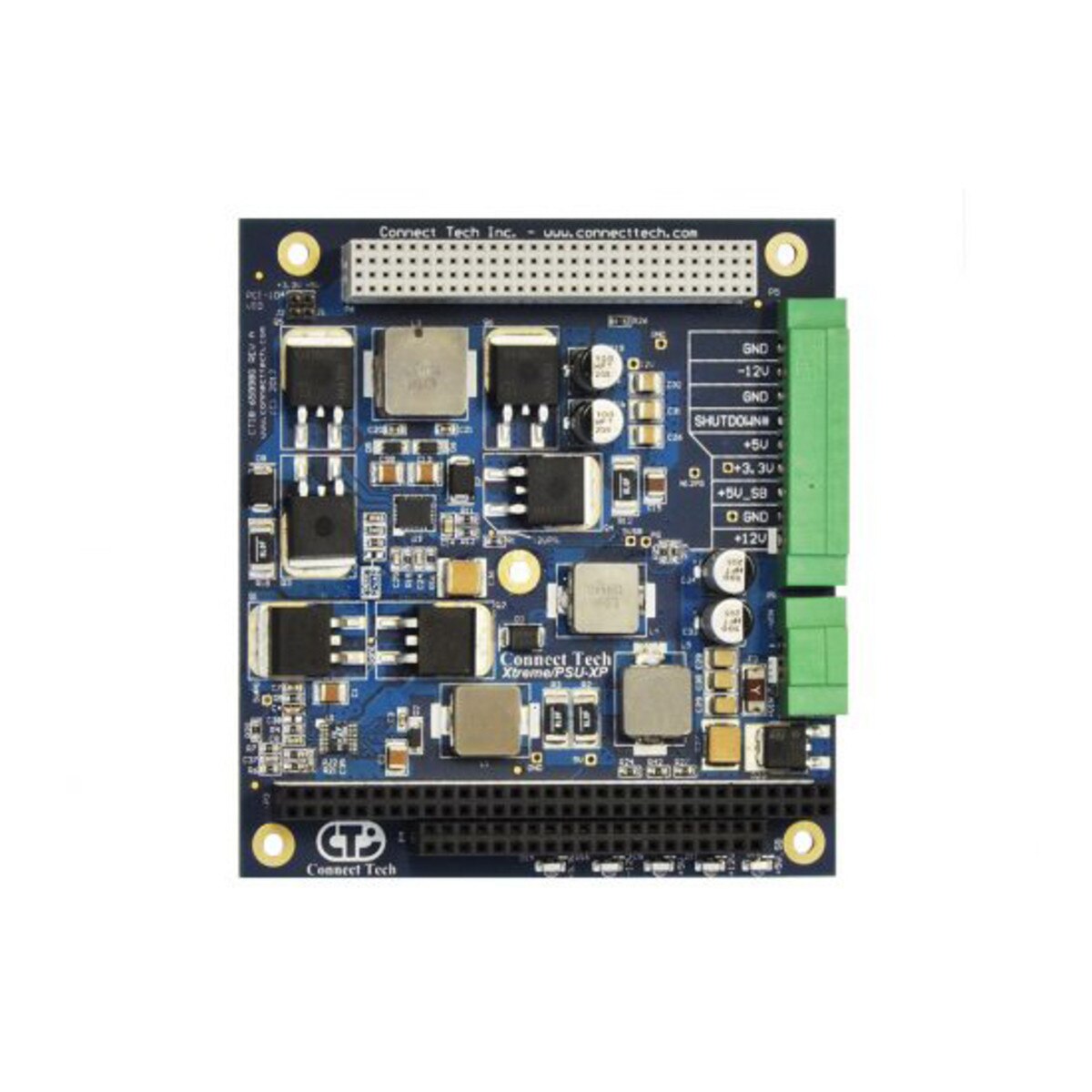

CTI Xtreme/PSU-XP Power Supply, PC/104-Plus Build; +5V @ 10A, +3.3V @10A,+12V @ 5A, -12V @0.5A, +5VSB @ 1A; +5V, +3.3V, +12V and -12V connected to PC/104 and PCI-104 Bus connectors.
  • Input Voltage Range: +6V to +36V DC
  • Total Output Power: 154W
  • Output Voltages: +3.3V@10 A, +5V @ 10A, +12V @ 5A, -12V @ 0.5A, +5V-Standby @ 1A
  • Operating Temperature: -40°C to +85°C (-40°F to 185°F)
  • Fully meets the PC/104 component height requirements
    • No extra stacking extenders needed
    • Other PC/104 boards can be stacked directly on top or below the Xtreme/PSG
  • Uses latest generation highest efficiency power controllers, inductors, and MOSFETs
  • Oversized MOSFETs for improved thermal performance (No Heat sinking needed)


MPN: PSG007
