Connect Tech Boson Carrier Board NVIDIA Jetson Nano, TX2 NX, Xavier NX, Orin NX, Orin Nano Supports Framos Camera Modules

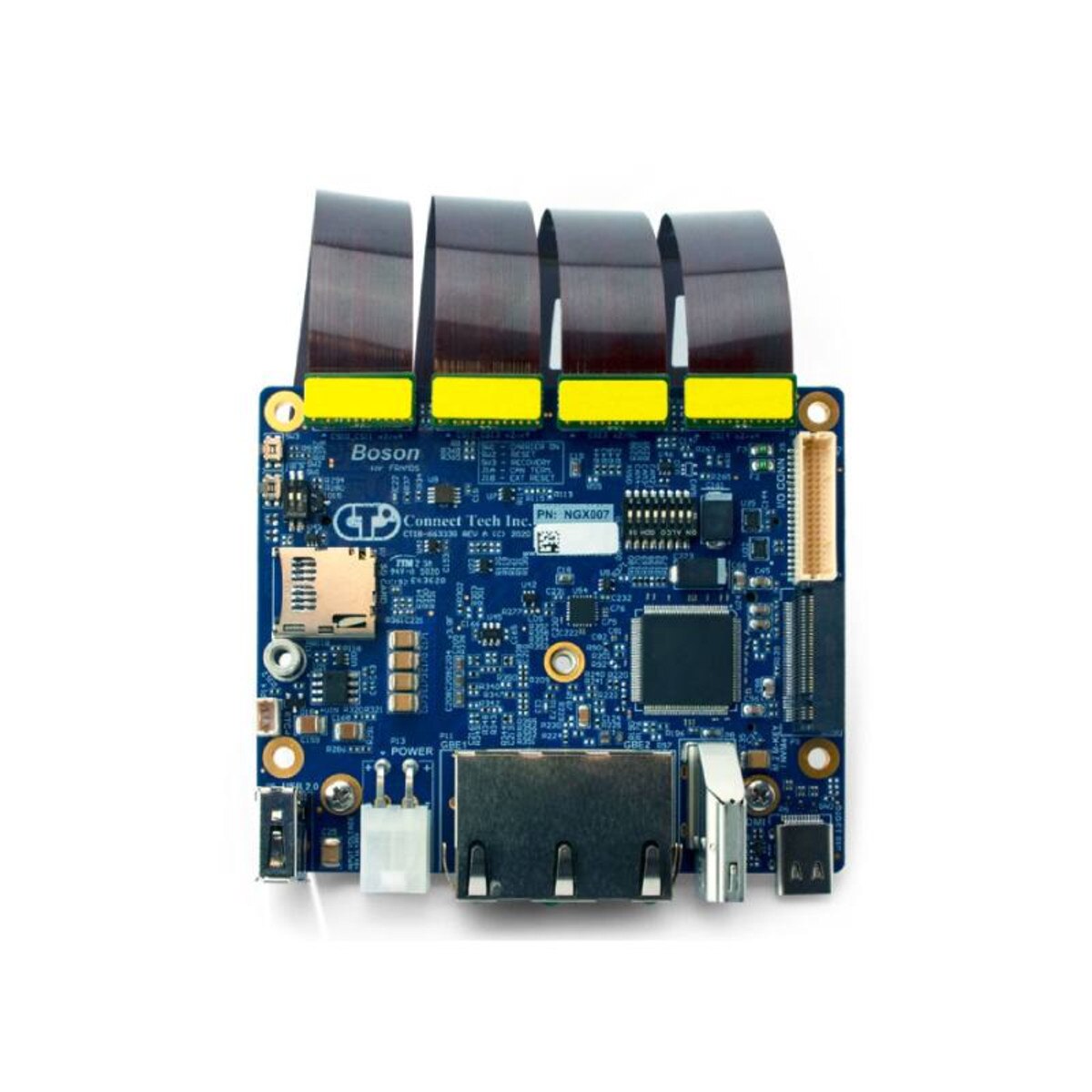

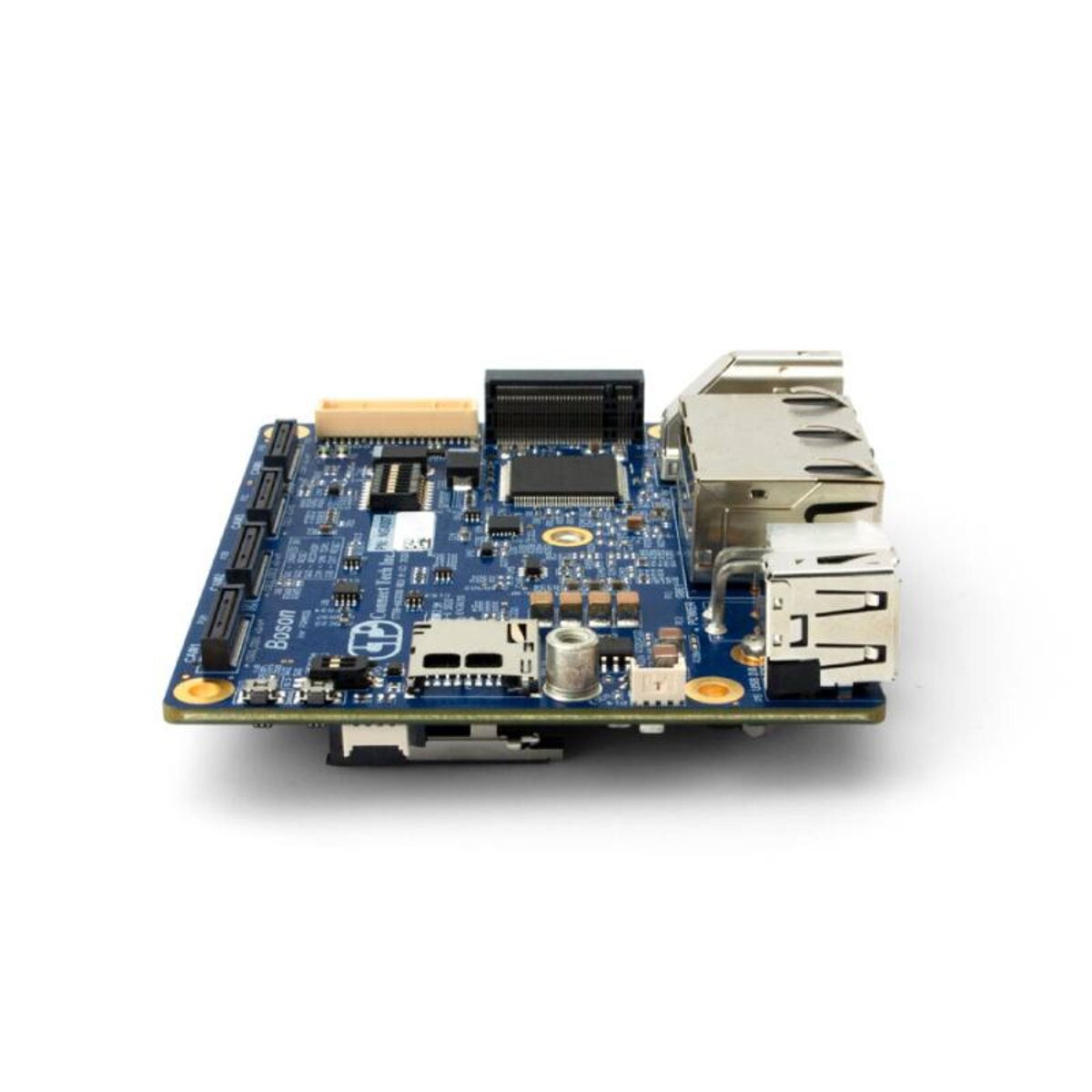

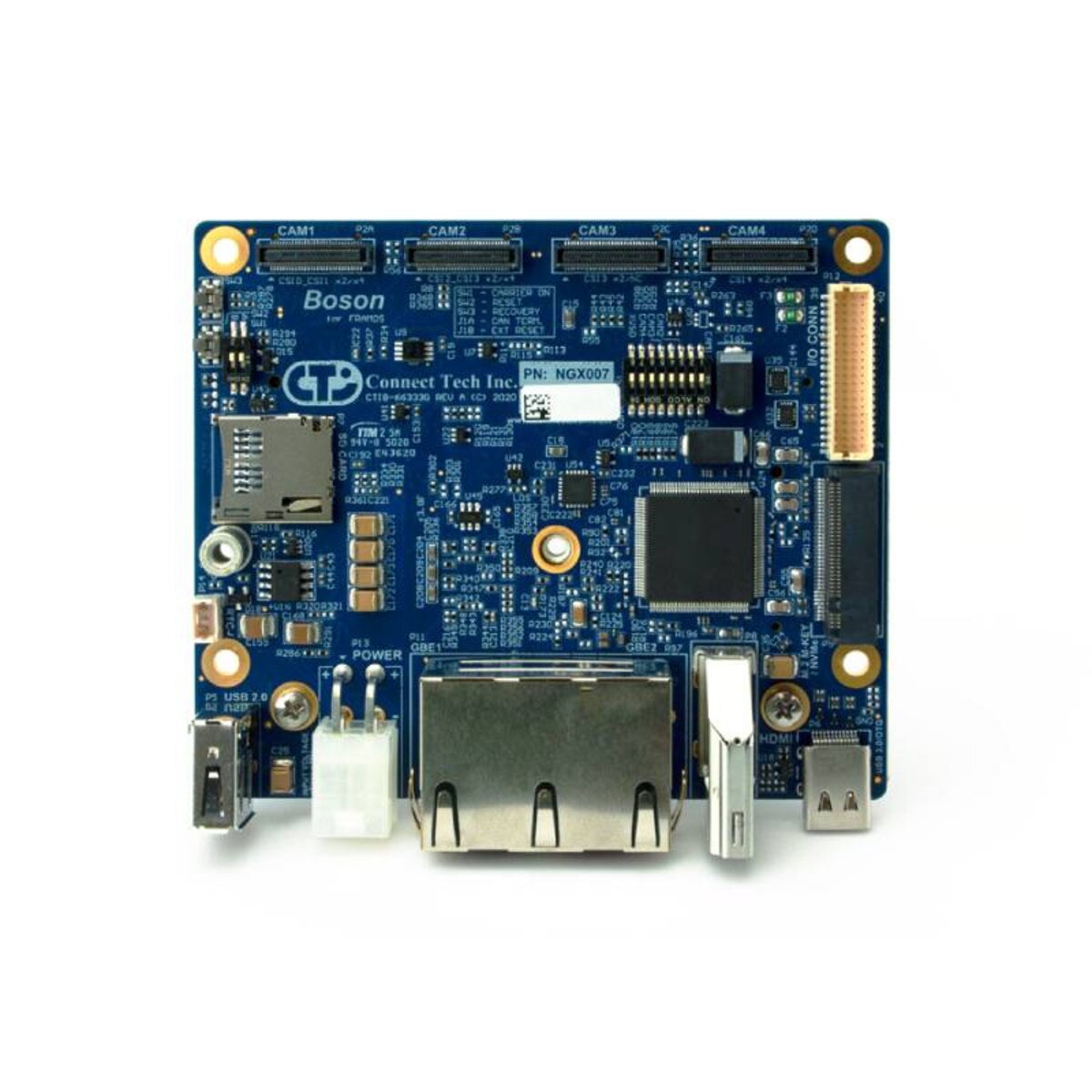

Connect Tech Boson Carrier Board for Jetson Nano, TX2 NX, Xavier NX, Orin NX, or Orin Nano. Supports Framos camera modules. Integrate up to 4x 2-lane or 3x 4-lane MIPI FRAMOS Sensor Modules with Nano, TX2 NX, and Xavier NX. Integrate up to 3x 2-lane or 2x 4-lane MIPI FRAMOS Sensor Modules with Orin NX and Orin Nano. 2x GbE, 1x NVME, 1x microSD (not functional if using Jetson Orin module), 8x GPIO, 2x I2C, USB 3.1, USB 2.0. MPN: NGX007

*To ensure compatibility, please indicate camera name

NOTE: Power Input Cable, sold separately (CBG408).

*The Jetson Orin series does not have SDIO support, so the microSD slot is not functional if using Orin. Orin modules do not have onboard storage; boot from NVME. CAM4 connector on board is not functional when using Orin.

For new development with the Jetson Orin NX or Orin Nano, please see the NGX020 or NGX021.
