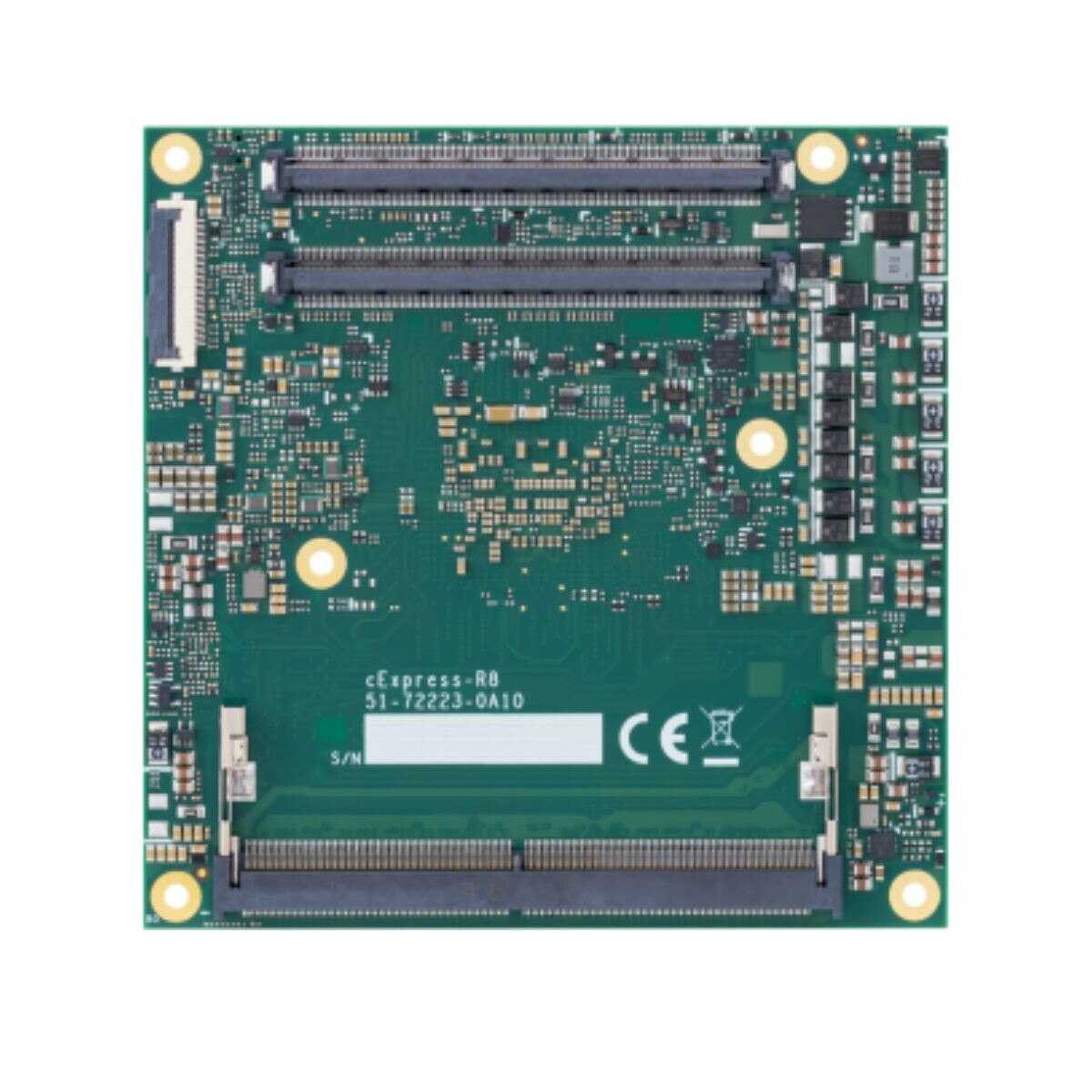

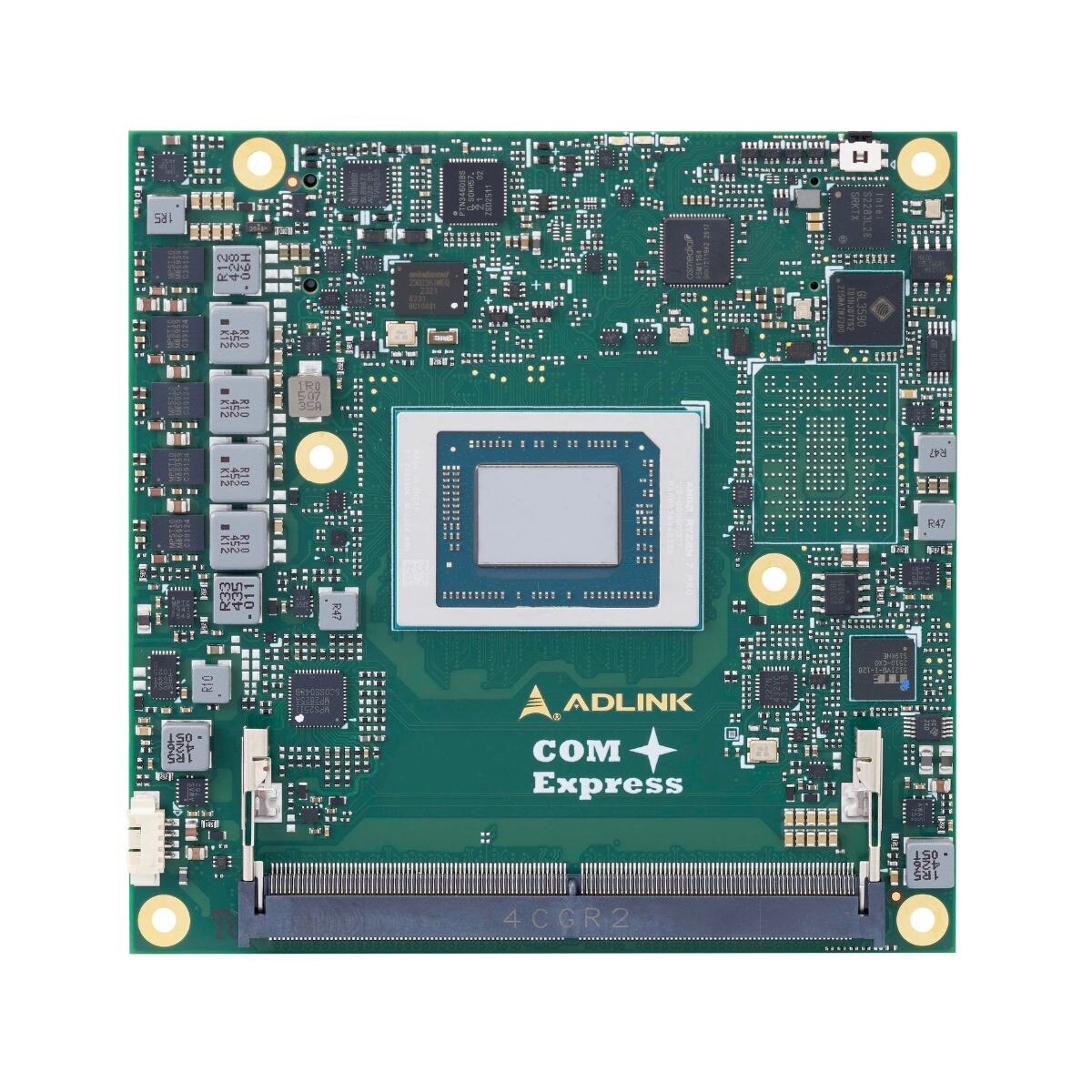

ADLINK cExpress-R8 COM Express Type 6 Compact AMD Ryzen™ 5 PRO 8640U

ADLINK cExpress-R8 COM Express Type 6 Compact AMD Ryzen™ 5 PRO 8640U at 3.5/4.9GHz, 28W TDP, 6-core/12-thread, integrated AMD RDNA 3 graphics, and integrated AMD XDNA NPU. Up to 96GB DDR5. 16x PCIe Gen4 lanes + SATA/LPC support. 2.5GbE and GbE. 4x USB 3.2, 4x USB 2.0, 2x UART, TPM 2.0. Up to four independent displays (DisplayPort, eDP, HDMI, LVDS, or VGA). 0°C to +60°C operating temperature.

This computer-on-module delivers power-efficient AI inferencing and fast decision-making at the industrial edge. With 10 years of product availability, it ensures long-term support for your design lifecycles. . MPN: cExpress-R8-8640U

*NCNR
