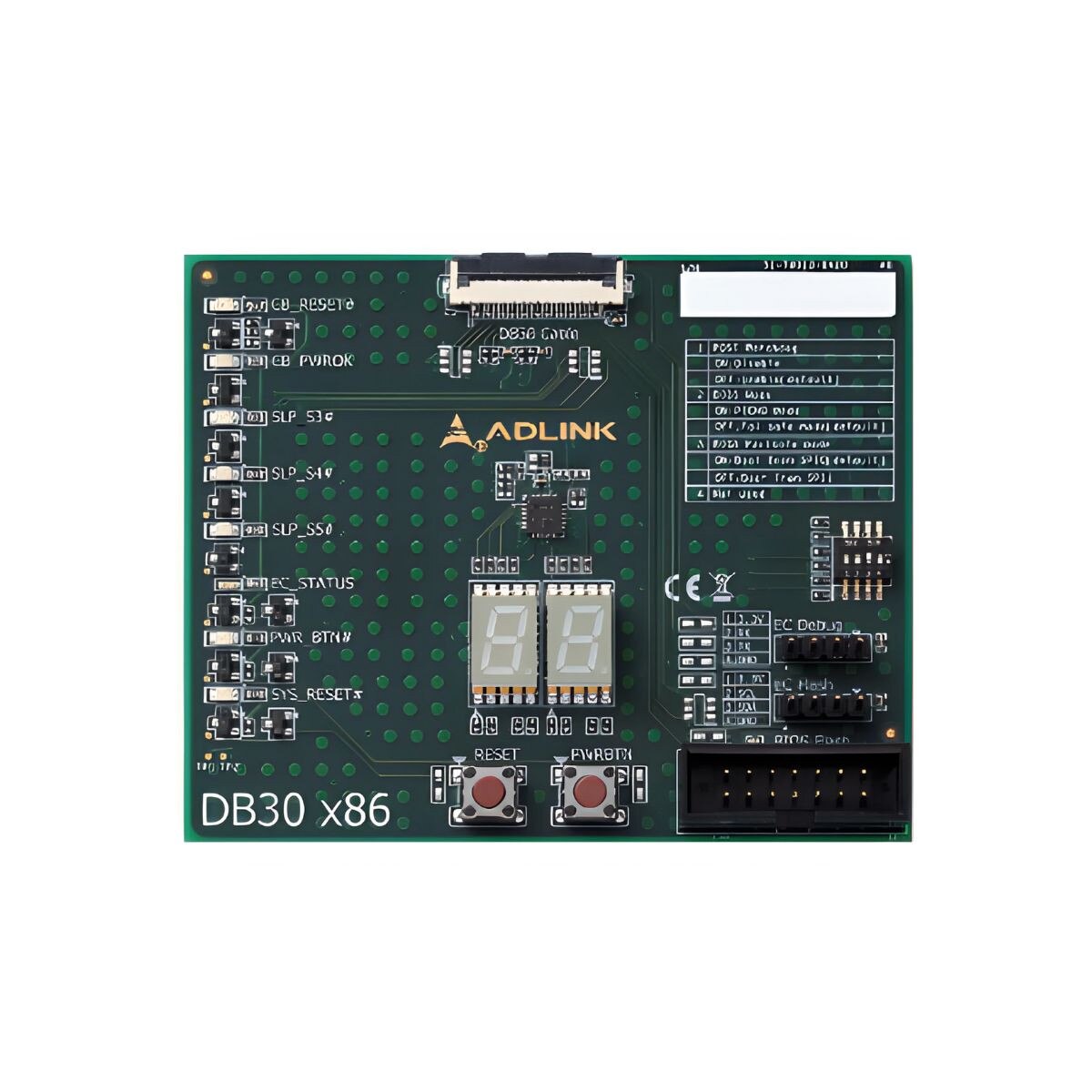

ADLINK Multi purpose Debug Board for 4th BMC equipped COM Express

ADLINK Multi purpose Debug Board for 4th BMC equipped COM Express. Designed for debugging of COM Express modules with FFC (FlexFoil Cable) debug connector. It includes an 80 port for Power on and Self-test (POST) via I2C interface, interface to SPI Flash for BIOS update, interface to EC for Embedded Controller (EC) update, Power and Reset buttons, and Status LEDs and Test Point for various debug tests.MPN: DB30 x86

*NCNR
