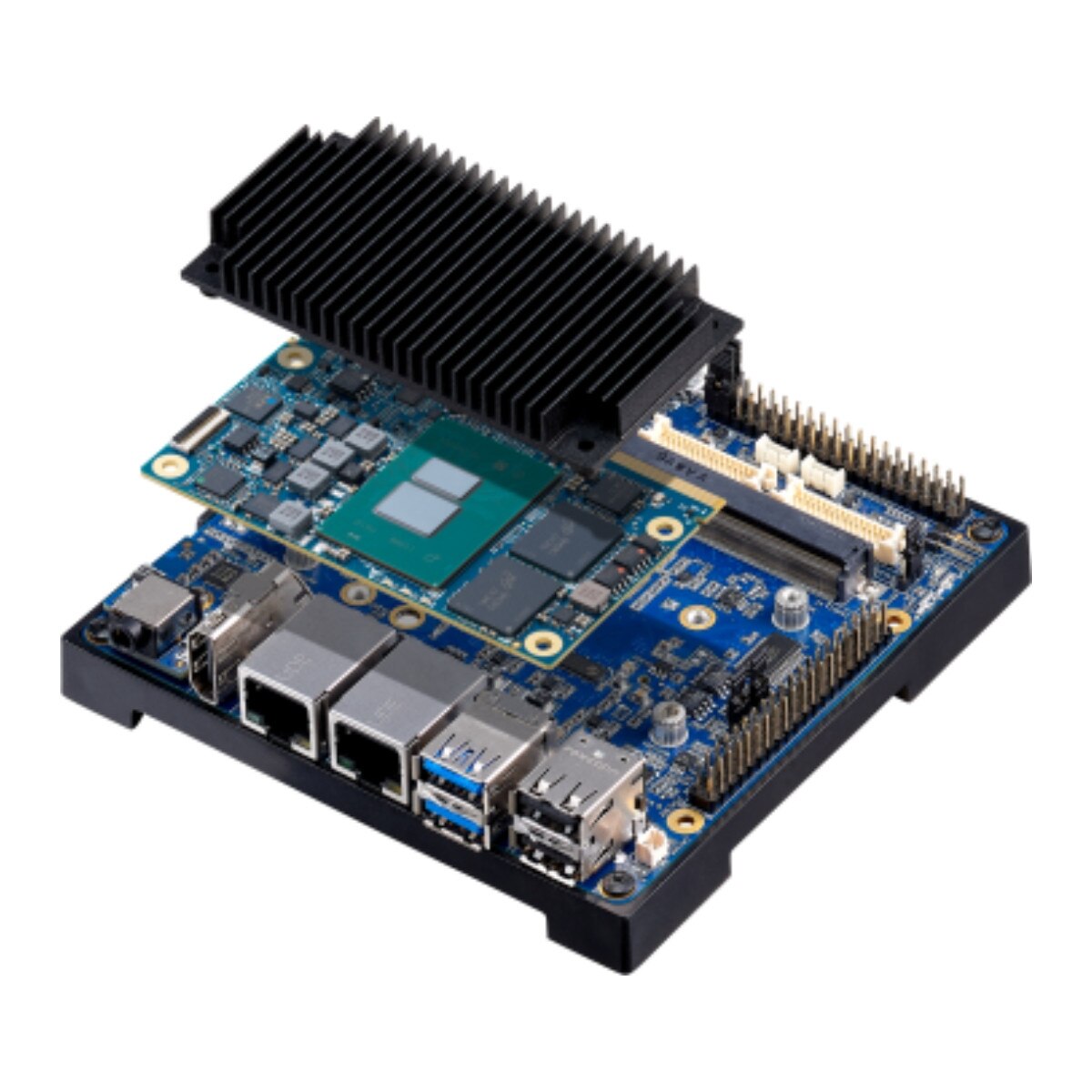

ADLINK I-Pi SMARC Plus DevKit Carrier and LEC-ASL module with Intel Atom x7433RE 8GB DDR5 64GB eMMC
Details

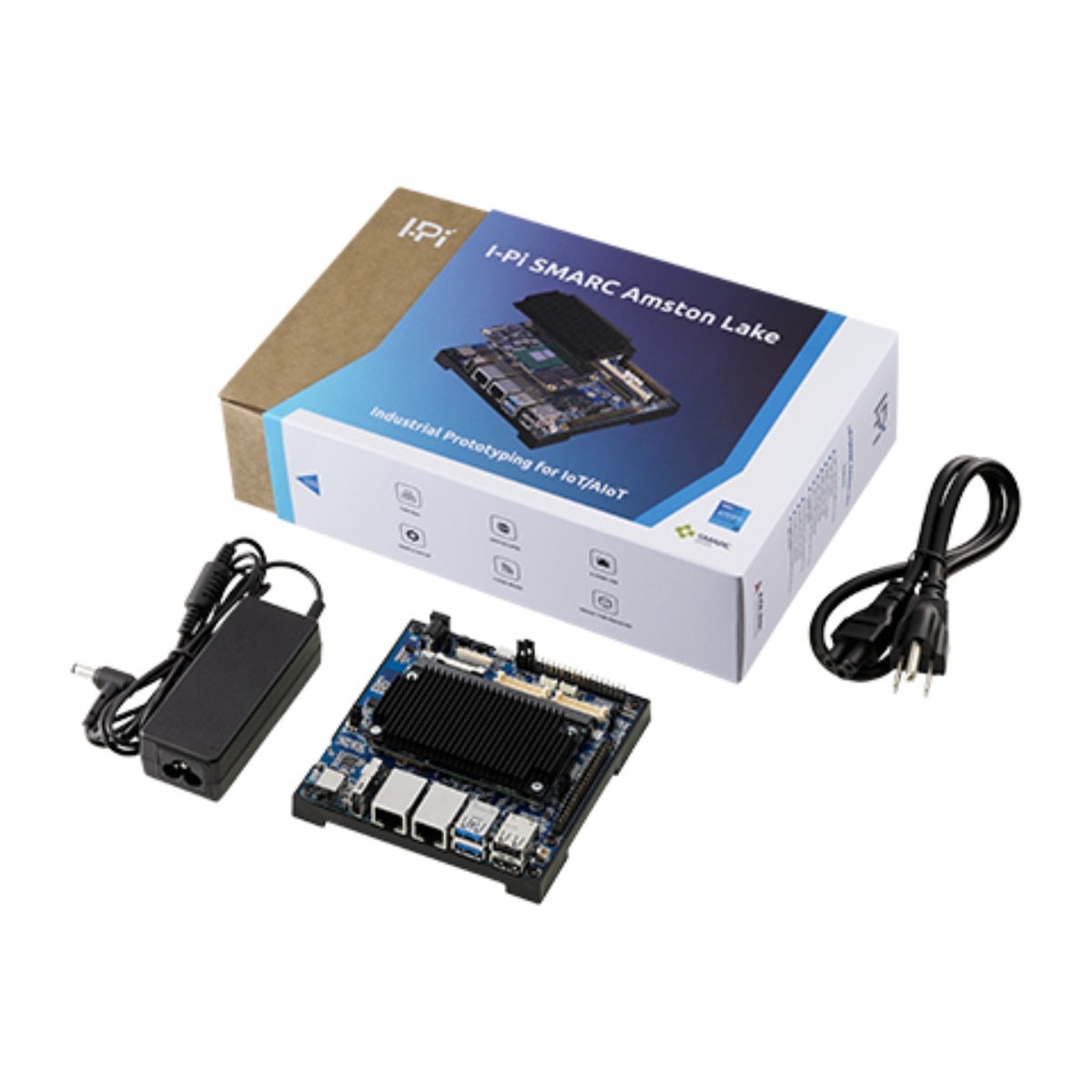

ADLINK I-Pi SMARC Plus Development Kit with SMARC Plus X Carrier and LEC-ASL SMARC Module with Intel® Atom® x7433RE quad core SoC (Amston Lake), 8GB LPDDR5 memory, 64GB eMMC, and US/EU AC Power Adapter. MPN: I-Pi LEC-ASL-x7433RE-8G-64G
*NCNR
Specifications: Intel Atom® X series x7433RE quad core SoC with Intel UHD integrated graphics with 32 EUs, Intel Gaussian; Neural Accelerator, Intel Boot Guard, Intel OS Guard, and Intel AES-New Instruction technologies, 8GB LPDDR5 memory with in-band-ECC support, 64GB eMMC storage, MIPI-DSI 4 lanes, HDMI, eDP, Dual Channel LVDS, Camera MIPI-CSI 4 lanes + MIPI-CSI 2 lanes, 2x 2.5GbE LAN with TSN support, 4x PCIe x1 Gen3, 2x USB 3.2 + 3x USB 2.0 + 1x USB 2.0 OTG, 3x UART, 2x CAN 2.0B and or FD, 2x SPI, 14x GPIO.
*NCNR
Specifications: Intel Atom® X series x7433RE quad core SoC with Intel UHD integrated graphics with 32 EUs, Intel Gaussian; Neural Accelerator, Intel Boot Guard, Intel OS Guard, and Intel AES-New Instruction technologies, 8GB LPDDR5 memory with in-band-ECC support, 64GB eMMC storage, MIPI-DSI 4 lanes, HDMI, eDP, Dual Channel LVDS, Camera MIPI-CSI 4 lanes + MIPI-CSI 2 lanes, 2x 2.5GbE LAN with TSN support, 4x PCIe x1 Gen3, 2x USB 3.2 + 3x USB 2.0 + 1x USB 2.0 OTG, 3x UART, 2x CAN 2.0B and or FD, 2x SPI, 14x GPIO.
