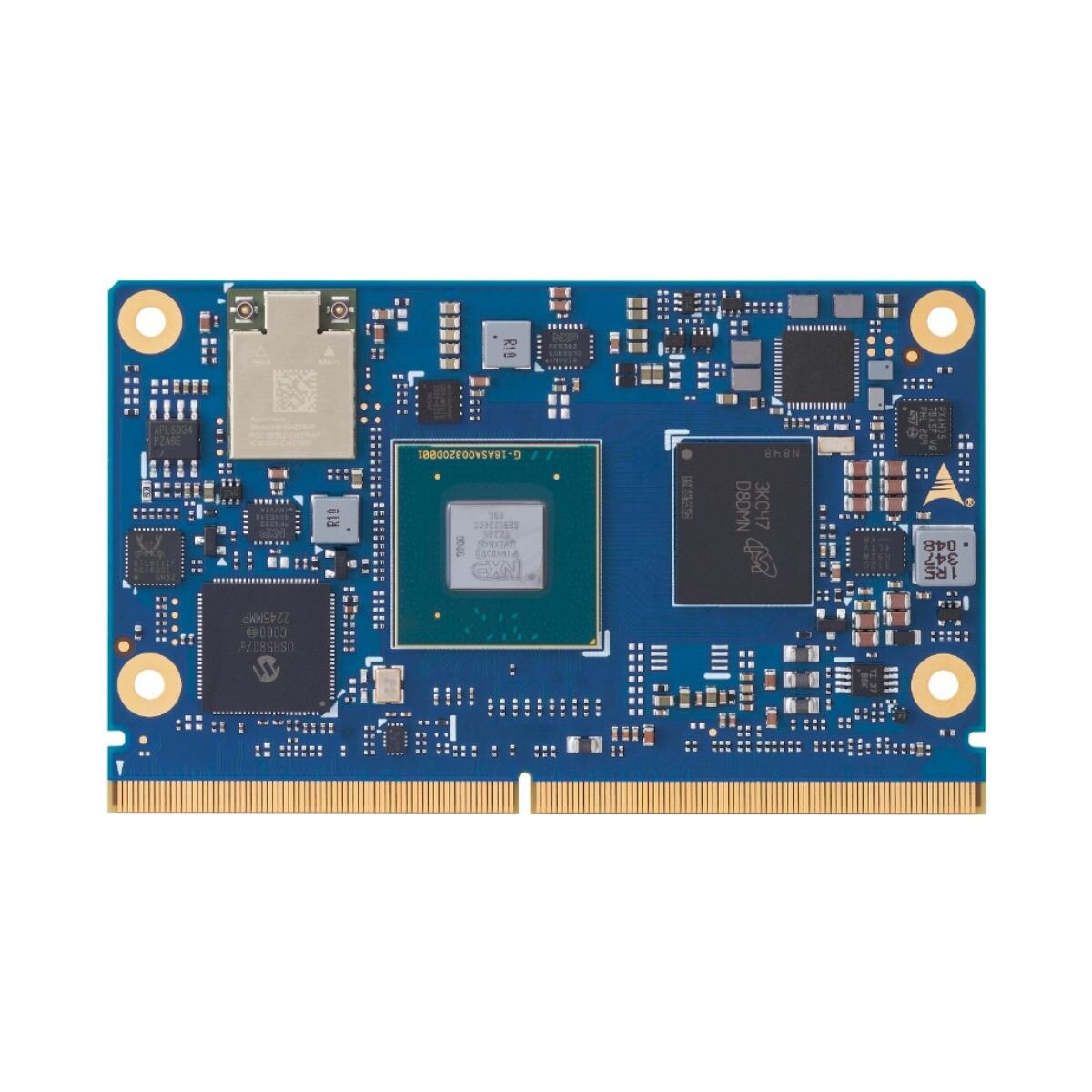

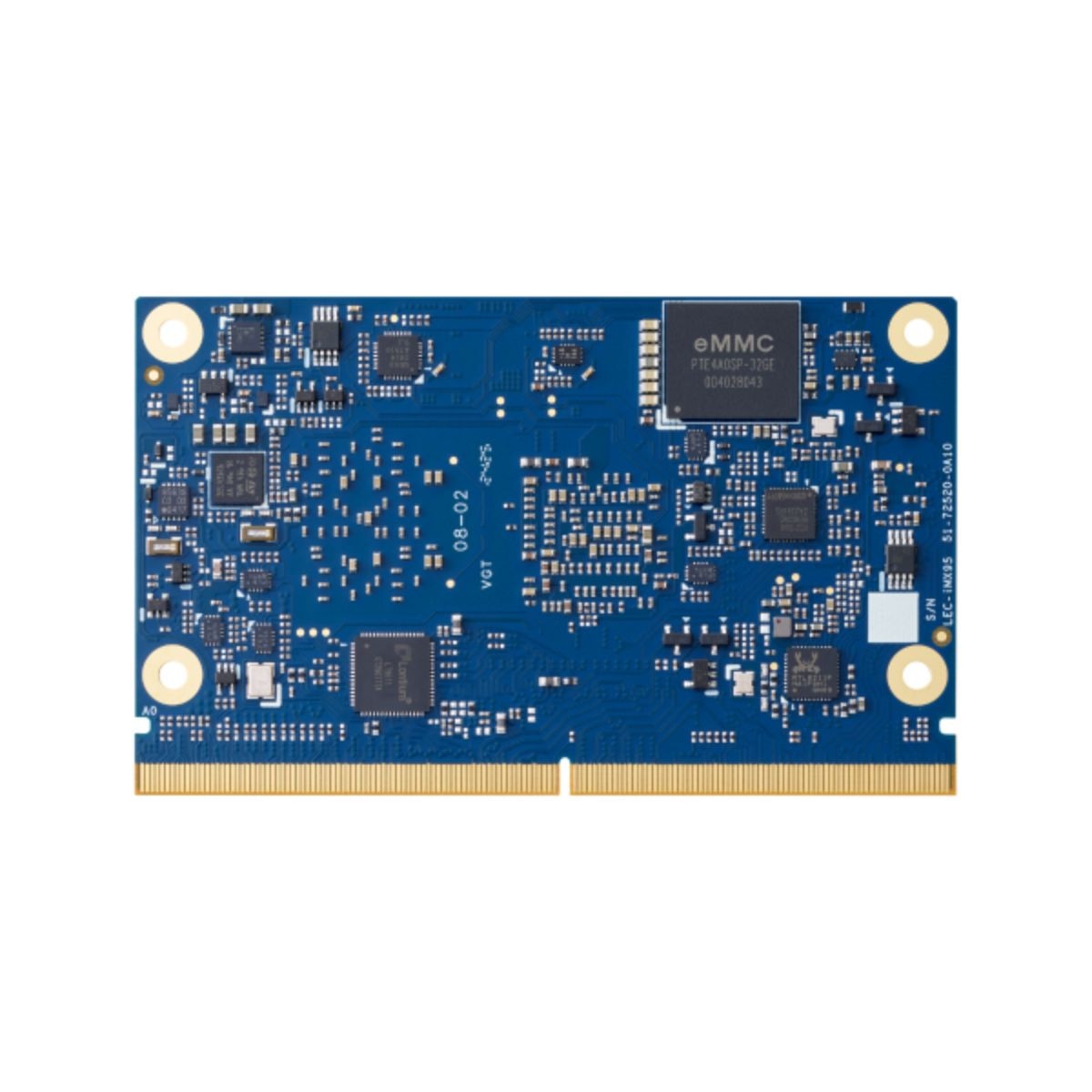

ADLINK LEC-iMX95 SMARC 2.1 Short Size Module with Hexa Core NXP i.MX 95 8GB DDR5 64GB eMMC -40°C to 85°C
New!
Details
ADLINK LEC-iMX95 SMARC 2.1 Short Size Module with Hexa Core NXP i.MX 95 (6x Arm Cortex-A55, 1x Arm Cortex-M7, 1x Arm Cortex-M33, NXP eIQ Neutron Neural Processing Unit), 8GB LPDDR5, 64GB eMMC, -40°C to 85°C. MPN: LEC-iMX95-H-8G-64G-ER
*NCNR
Features:
• NPU up to 2.0 TOPS
• 2x GbE with Time Sensitive Networking
• 1x MIPI DSI 4 lanes, dual channel LVDS port 18/24 bit, MIPI CSI RX interface
• I2S or SWD audio codec located on carrier
• 2x USB 3.0, 3x USB 2.0, 1x USB 2.0 OTG
• 2x CAN2.0B only or mixed CAN2.0B and CAN FD mode, data bit rate up to 8 Mbps
• 2x PCIe x1 Gen3
• 4x UART interfaces, 2x SPI, 1x I2S, 4x I2C, 14x GPIO with interrupt, one GPIO with PWM
The LEC-IMX95 integrates power-efficient, high-performance compute and immersive Arm Mali 3D graphics with an innovative NXP NPU, accelerating machine learning and high-speed data processing while delivering robust safety and security features. Dual image signal processors and two camera inputs make it an ideal choice for computer vision systems. Deploy the LEC-IMX95 for next-generation IoT and industrial applications, including smart home, smart city, building automation, medical systems, and Industry 4.0.
