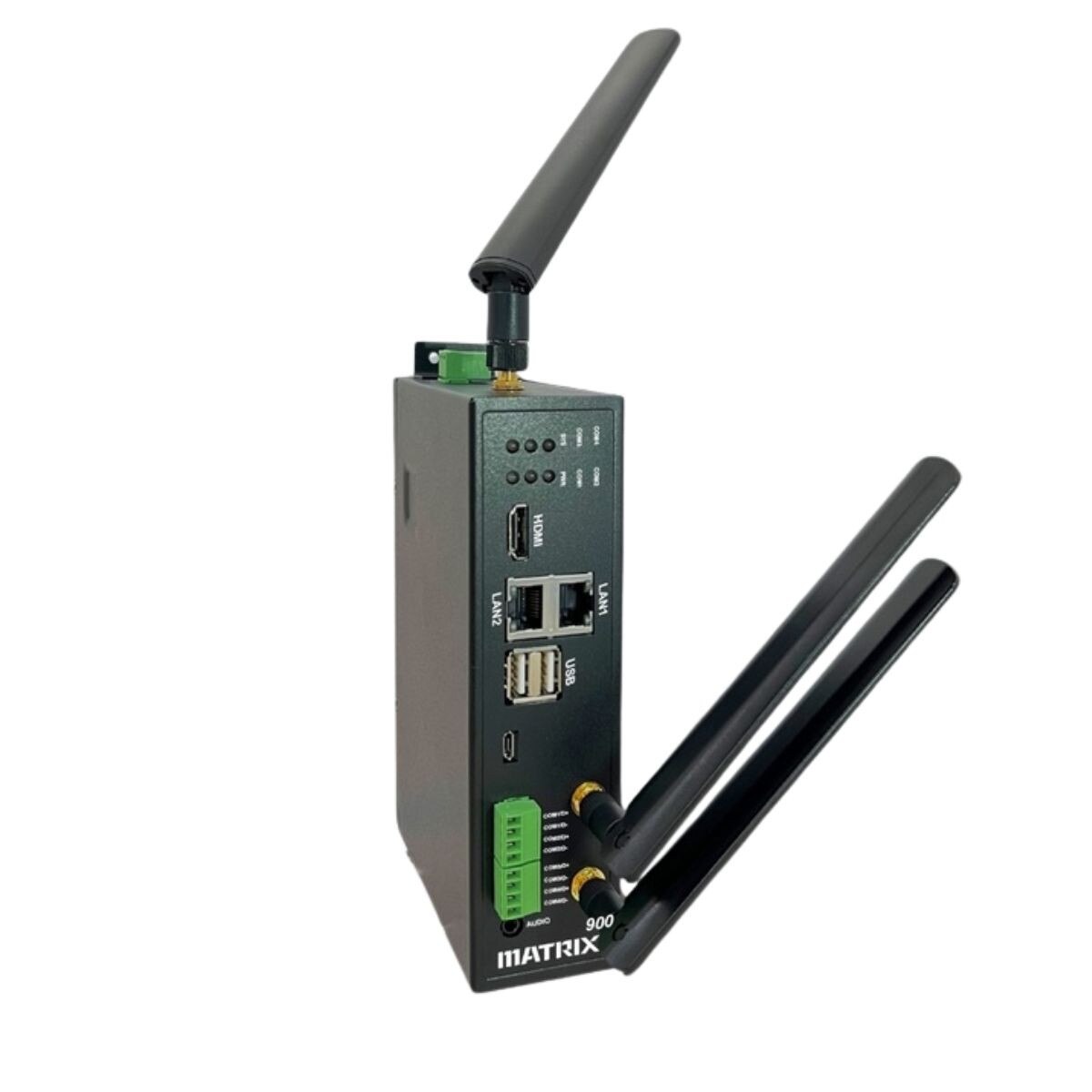

Artila Matrix-900 Quad-Core Cortex-A72 Powered IIoT Gateway Supports M.2 AI Inference Accelerator

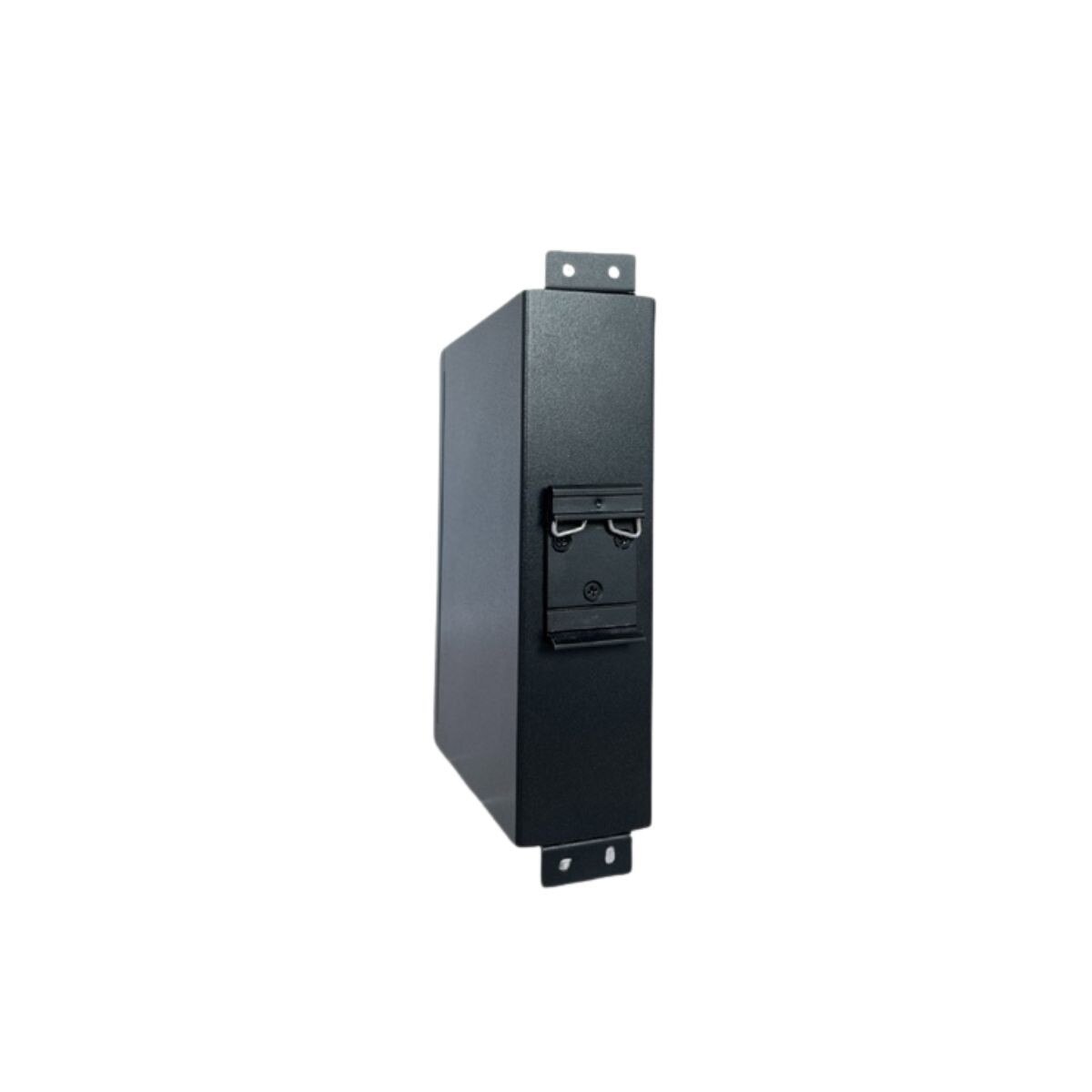

Artila Matrix-900 with Raspberry Pi Compute Module 4, Processor BCM2711, Quad-Core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz, 4GB DDR, 16GB eMMC, no WiFi. CM4 with thermal pad is mounted on the I/O board and the assembly is packaged into a sheet metal box. Mounting accessories included. Raspberry Pi OS with desktop is pre-installed at the factory. I/O board has connectors for: 1x 10/100, 1x GbE, 2x USB 2.0, 1x HDMI, 4x RS485, 1x RS232, microSD socket (booting from SD card not supported), Real Time Clock, M.2 B-Key PCIe (1 lane, Gen 2) for AI inference accelerator, 5G/GPS module, or SSD module. 45 x 166 x 120mm, 0°C to 70°C. DIN-Rail mount and wall mount. MPN: Matrix-900

*Call for Pricing
