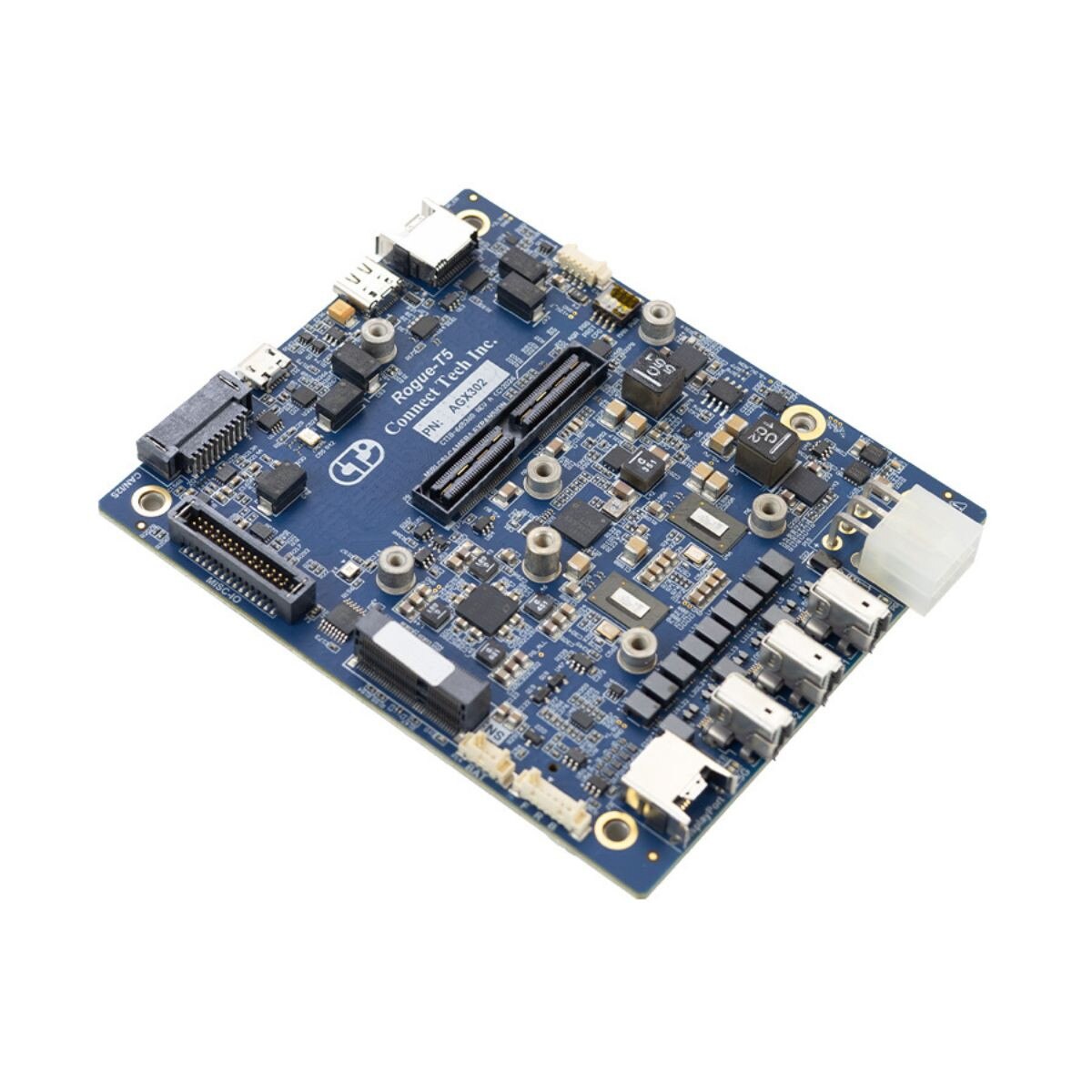

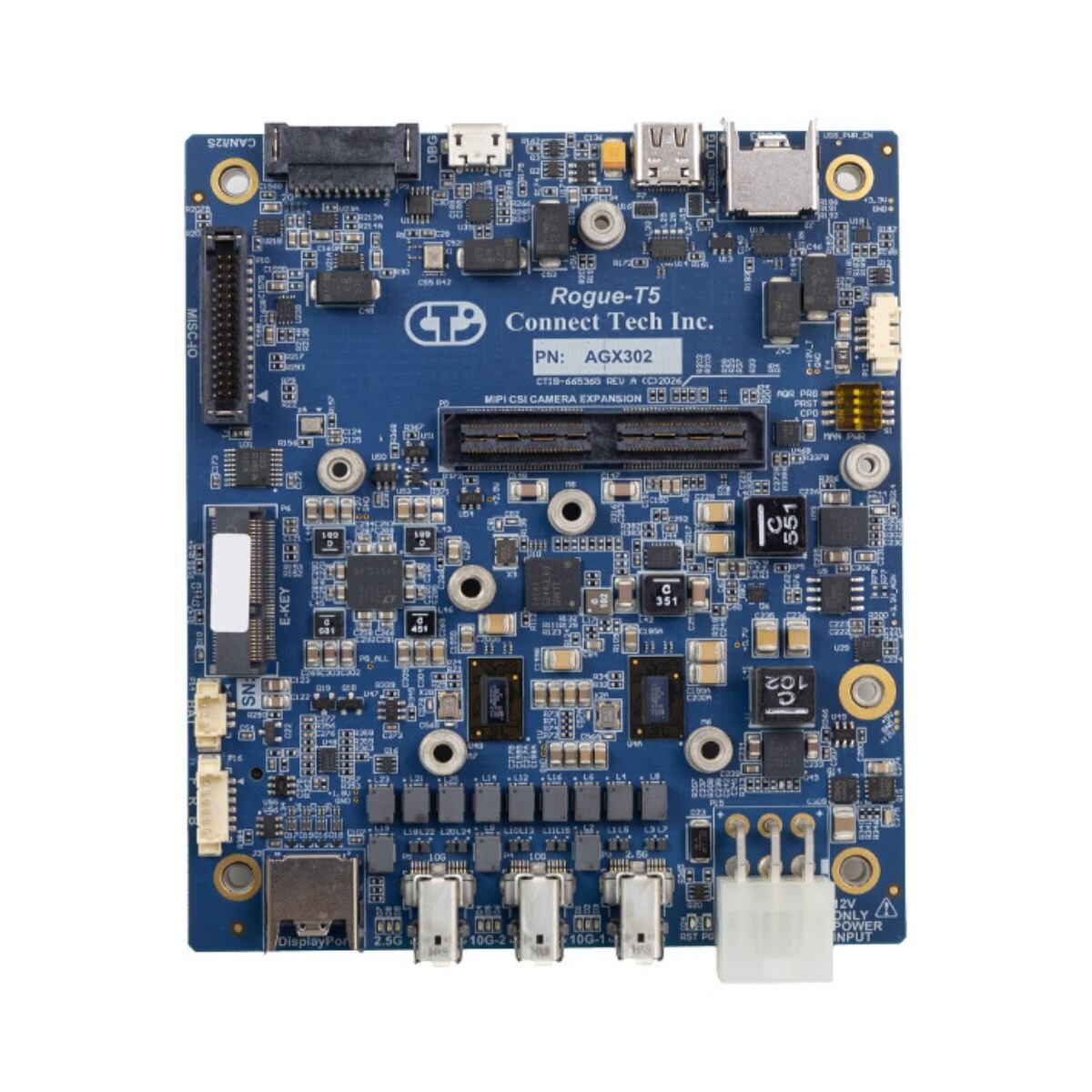

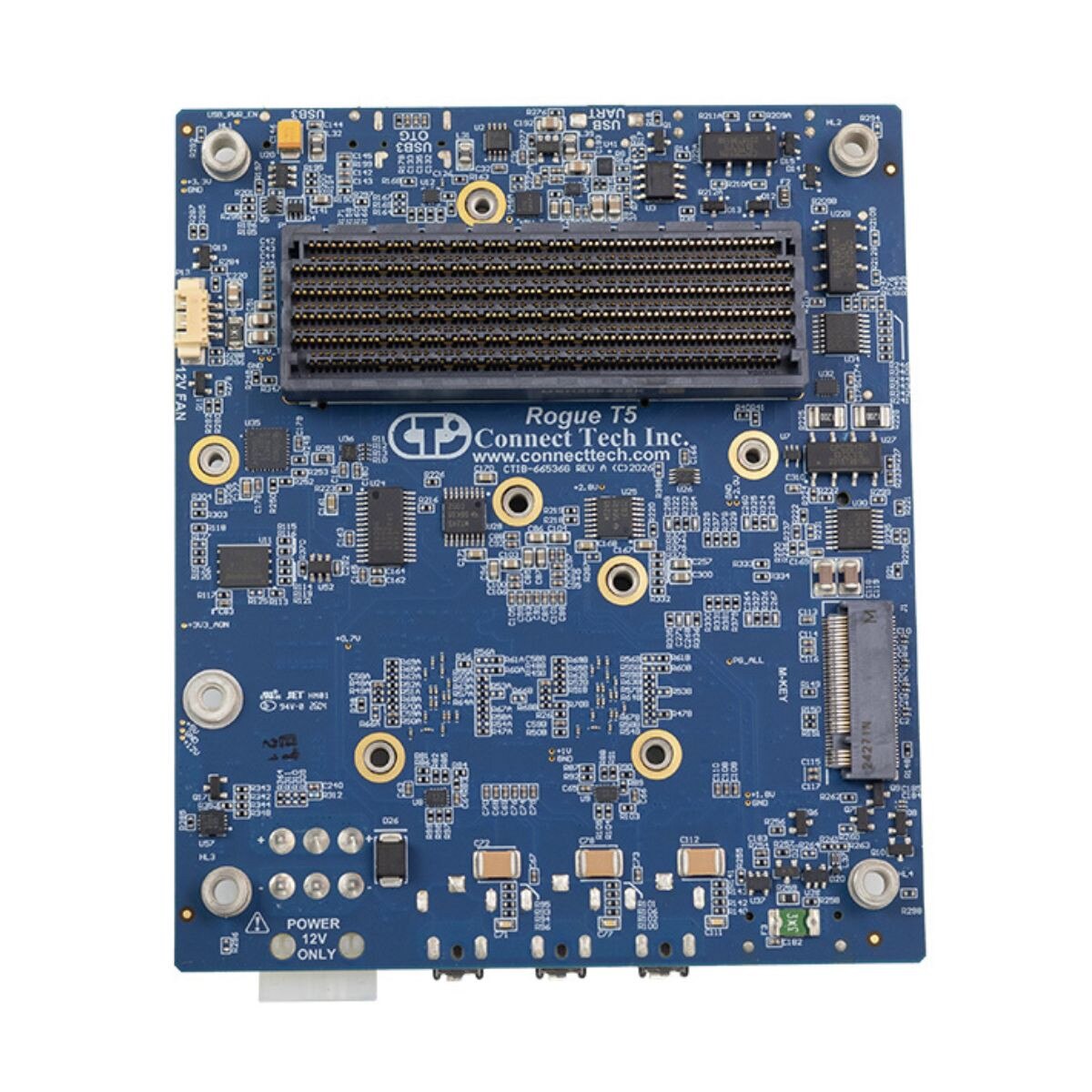

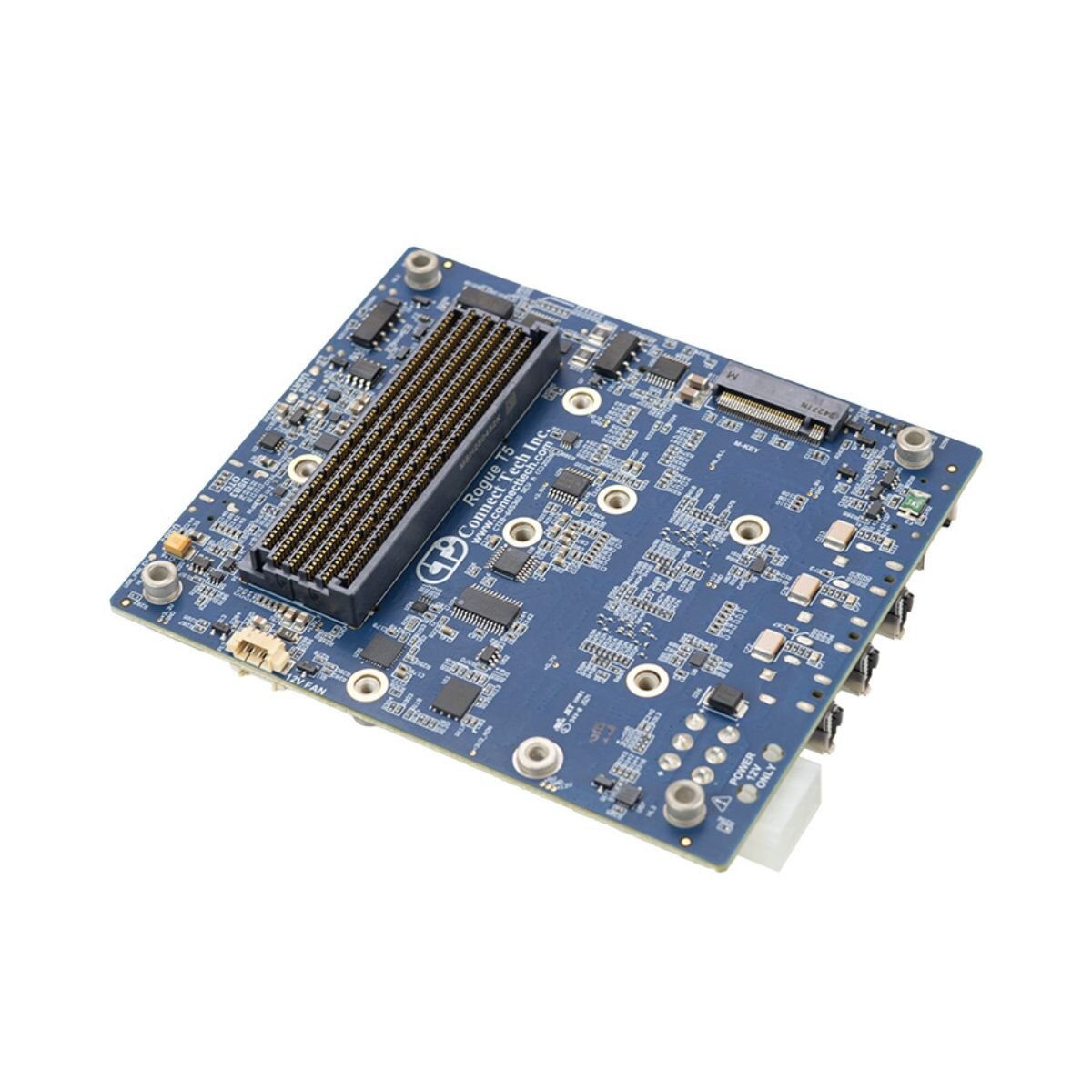

Connect Tech Rogue-T5 AGX302 Carrier for NVIDIA Jetson Thor T5000
New!
Details
Connect Tech Rogue-T5 AGX302 Carrier for NVIDIA Jetson Thor T5000.
Features of the Rogue-T5:
• 2x 10GbE and 1x 2.5GbE with IX Industrial rugged positive locking high-speed connectors.
• 1x USB 3.2 Gen2 (Type-C w/ OTG), 1x USB 3.2 Gen2 with rugged locking high-speed Samtec ARF6 Connector. (Use XBG026 breakout board to breakout to standard USB-C connector.)
• 1x DisplayPort with rugged locking high-speed Samtec ARF6 connector. (Use XBG037 breakout board to breakout to standard DisplayPort Connector.)
• 16-lanes MIPI CSI-2 via high-density camera connector.
• 1x NVMe PCIe M.2 Key-M 2280, 1x NVMe PCIe M.2 Key-E (WiFi/BT).
• 4x CAN 2.0b ports, 2x RS-232, 2x UART, 1x I2C, 3x GPIO, 1x PWM, and 1x I2S interfaces.
Camera add-on expansion boards are available for: 3G-SDI/HD-SDI, GMSL3, GMSL2, FPD-Link III, HDMI Input and direct MIPI Input.
12V DC power input. 92mm x 108mm. -40°C to +85°C operating temperature (carrier board only).
The Rogue-T5 is a rugged, small form factor, deployment-ready carrier for Jetson Thor that is designed to support the increased AI performance, open models, sensor bandwidth, and networking demands of next-generation autonomous and robotic systems. Ideal for humanoid robotics, autonomous vehicles, and perception systems.
MPN: AGX302
