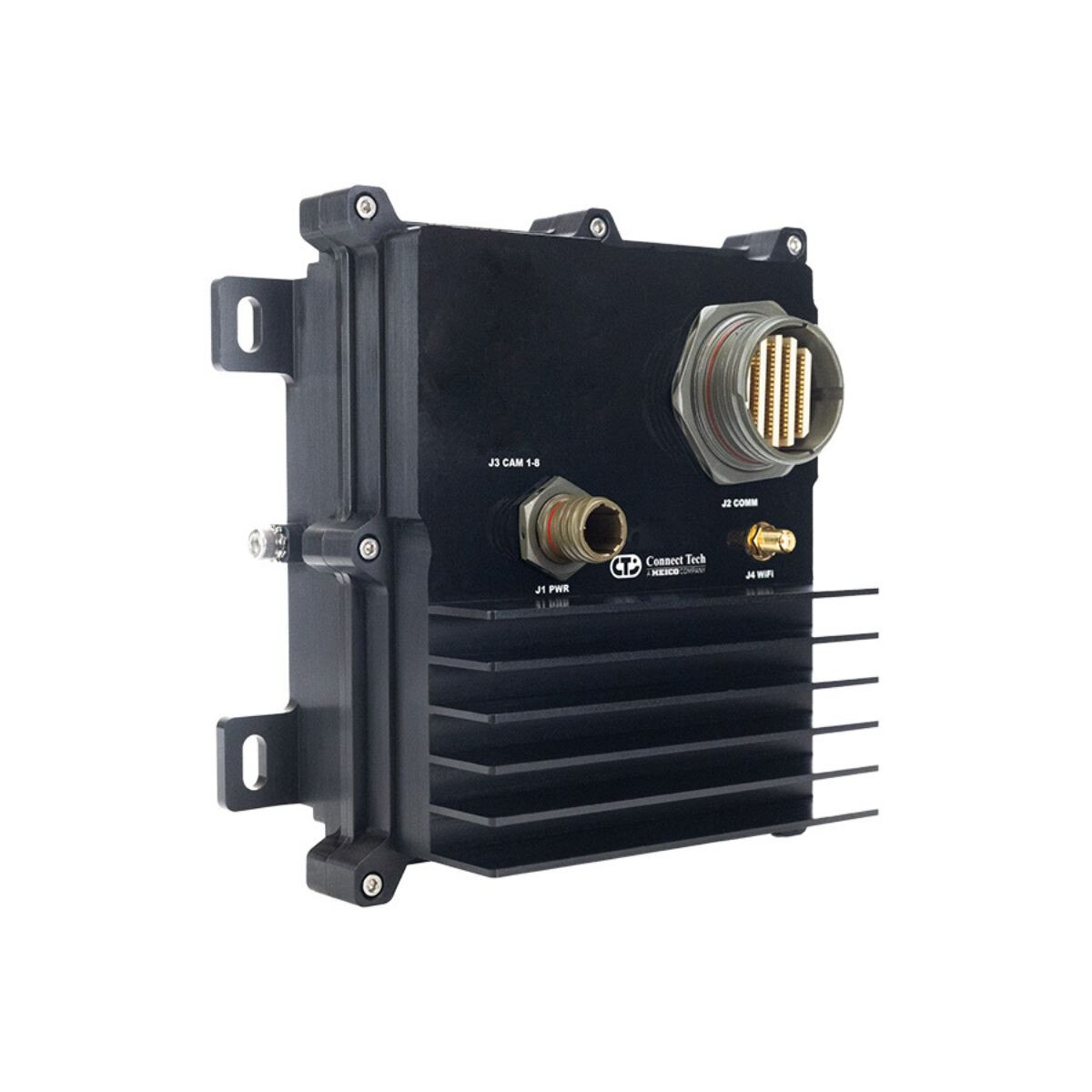

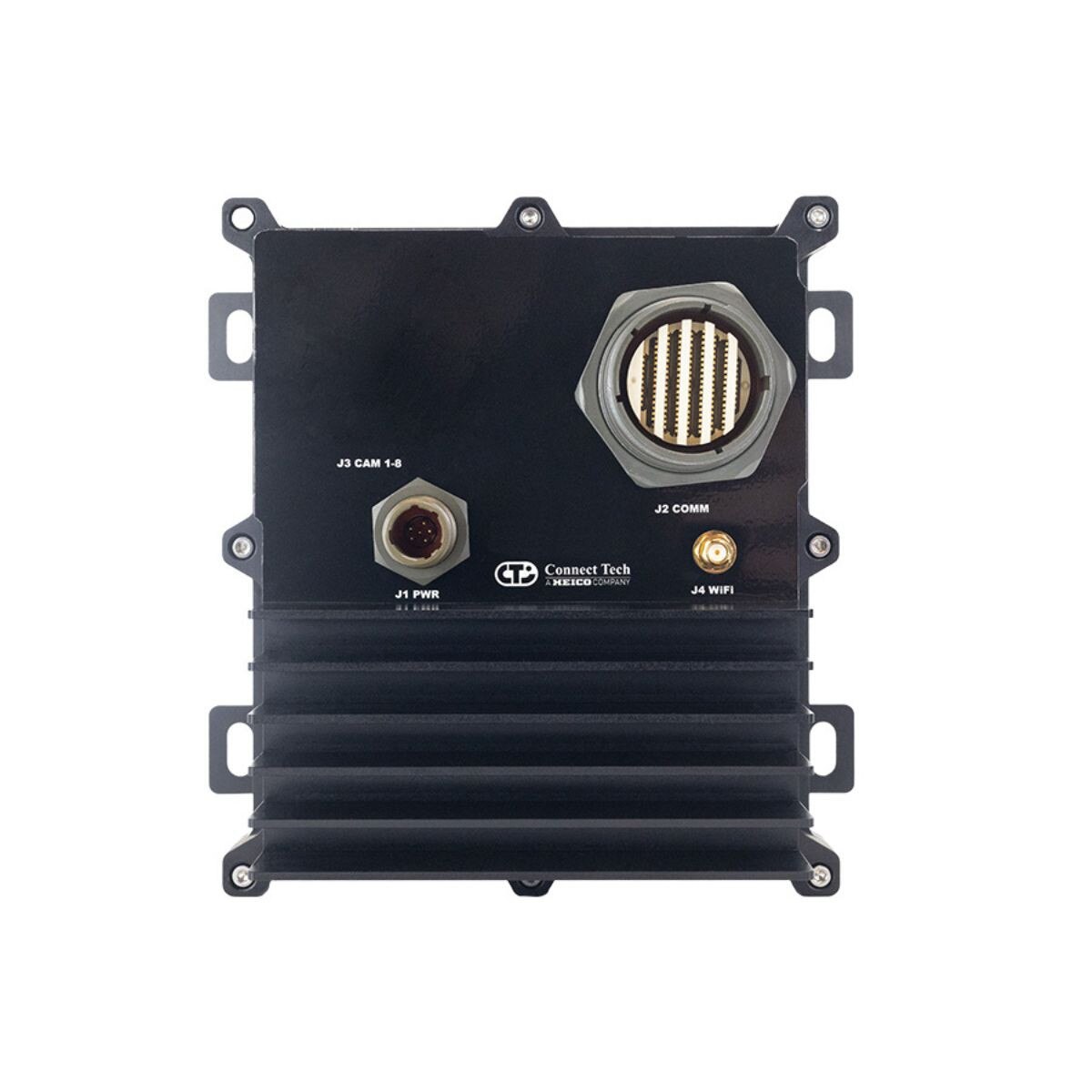

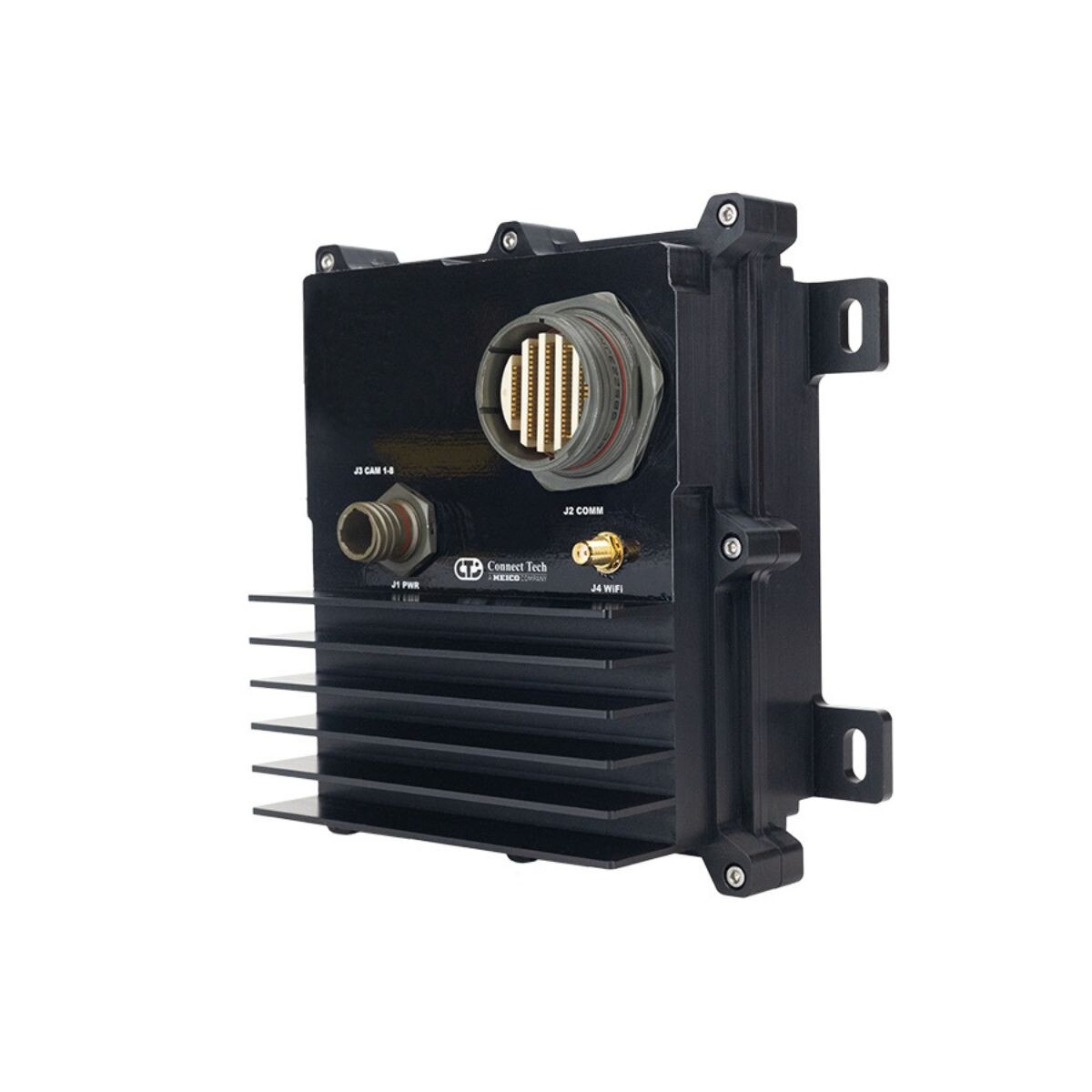

Connect Tech Sentry-X2 Mini MIL-Rugged System with Jetson Orin NX 16GB 2TB NVMe WiFi6/BT
New!
Details
Connect Tech Sentry-X2 Mini MIL-Rugged Embedded System integrated with NVIDIA® Jetson Orin NX 16GB Module, 2TB NVMe, WiFi6/BT. MPN: ESG650-001
*NCNR
Ratings and Features:
• Fully qualified to environmental standards: MIL-STD-810H, DO-160H
• Fully qualified to EMC/EMI standards: MIL-STD-461G, MIL-STD-704F
• IP67+ rated D38999 connectors
• 1x 2.5GbE, 1x GbE
• 2x 2x USB 3.2 Ports (10Gbps Capable)
• 1x M.2 M Key (Up to 4TB NVMe); 1x M.2 E Key Wi-Fi/BT (optional)
• TPM 2.0 hardware security
• 1x DisplayPort 1.4 Output 4K @ 60HZ
• 1x Non-Isolated CAN 2.0b
• 5x 3v3 GPIO (1x PWM capable); 1x 3.3V, 1A Source pin; 1x UART (RS232/422/485 configurable); 1x 3.3V I2C; 1x 3.3V SPI; 2x 3.3V UART
Sentry-X2 Mini leverages the NVIDIA Jetson Orin NX 16GB to deliver 157 TOPS of AI performance, enabling real-time AI inference and autonomous decision support at the tactical Edge without cloud dependency. Fully qualified to demanding environmental and EMC standards, including MIL-STD-810H and DO-160H, the system features IP67+ rated connectors and a compact footprint for integration into space-constrained environments. It features broad I/O and connectivity including 2.5GbE and GbE, 2x USB 3.2 ports, DisplayPort, 2x UART, CAN, GPIO, I2C, and SPI. Sentry-X2 is ideal in aerospace and defense deployments like autonomous UAS payloads, ISR edge processing, autonomous ground vehicles, and airborne systems.
*NCNR
Ratings and Features:
• Fully qualified to environmental standards: MIL-STD-810H, DO-160H
• Fully qualified to EMC/EMI standards: MIL-STD-461G, MIL-STD-704F
• IP67+ rated D38999 connectors
• 1x 2.5GbE, 1x GbE
• 2x 2x USB 3.2 Ports (10Gbps Capable)
• 1x M.2 M Key (Up to 4TB NVMe); 1x M.2 E Key Wi-Fi/BT (optional)
• TPM 2.0 hardware security
• 1x DisplayPort 1.4 Output 4K @ 60HZ
• 1x Non-Isolated CAN 2.0b
• 5x 3v3 GPIO (1x PWM capable); 1x 3.3V, 1A Source pin; 1x UART (RS232/422/485 configurable); 1x 3.3V I2C; 1x 3.3V SPI; 2x 3.3V UART
Sentry-X2 Mini leverages the NVIDIA Jetson Orin NX 16GB to deliver 157 TOPS of AI performance, enabling real-time AI inference and autonomous decision support at the tactical Edge without cloud dependency. Fully qualified to demanding environmental and EMC standards, including MIL-STD-810H and DO-160H, the system features IP67+ rated connectors and a compact footprint for integration into space-constrained environments. It features broad I/O and connectivity including 2.5GbE and GbE, 2x USB 3.2 ports, DisplayPort, 2x UART, CAN, GPIO, I2C, and SPI. Sentry-X2 is ideal in aerospace and defense deployments like autonomous UAS payloads, ISR edge processing, autonomous ground vehicles, and airborne systems.
