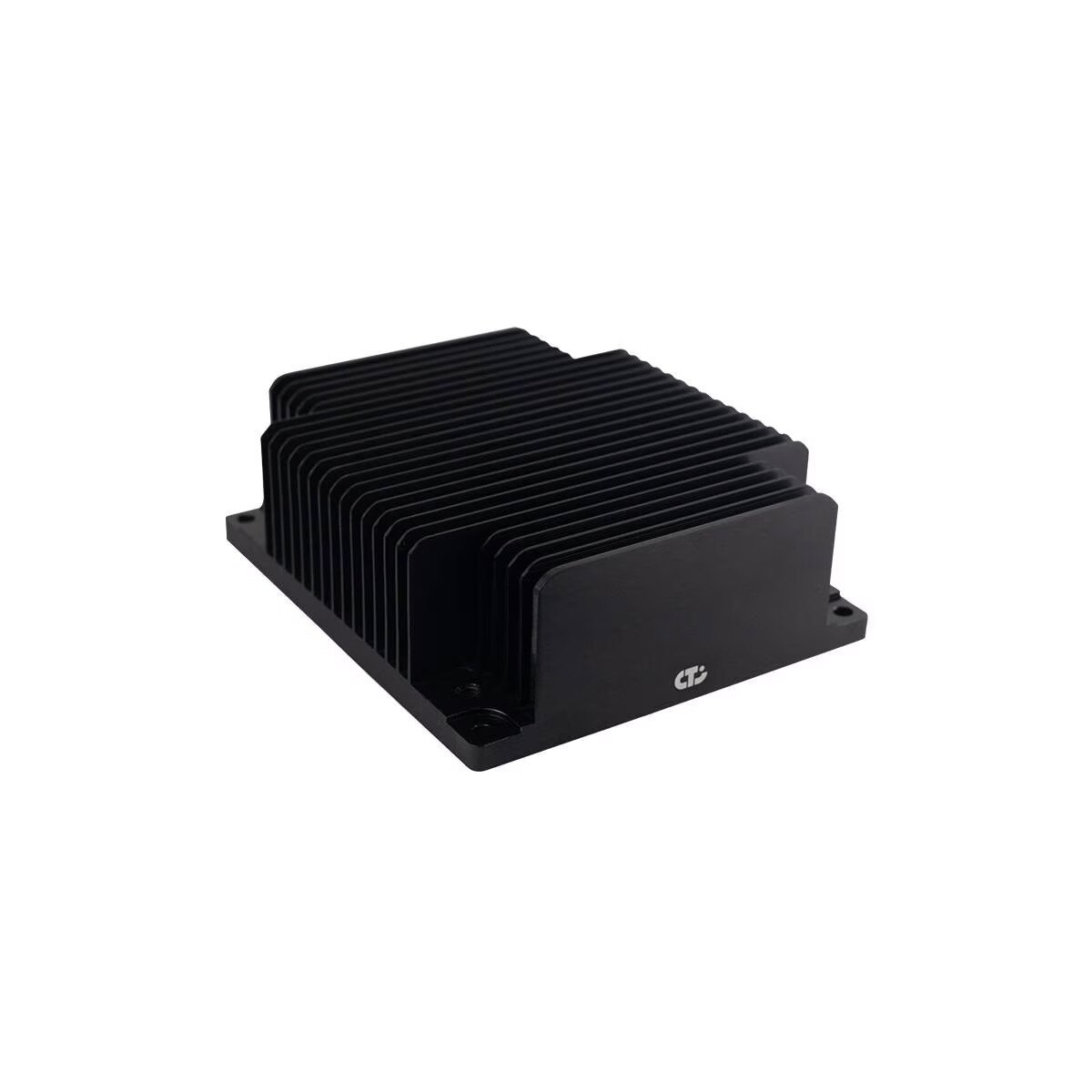

Connect Tech ThermiQ Rotated Fins Passive Heat Sink for NVIDIA Jetson AGX Orin
Details

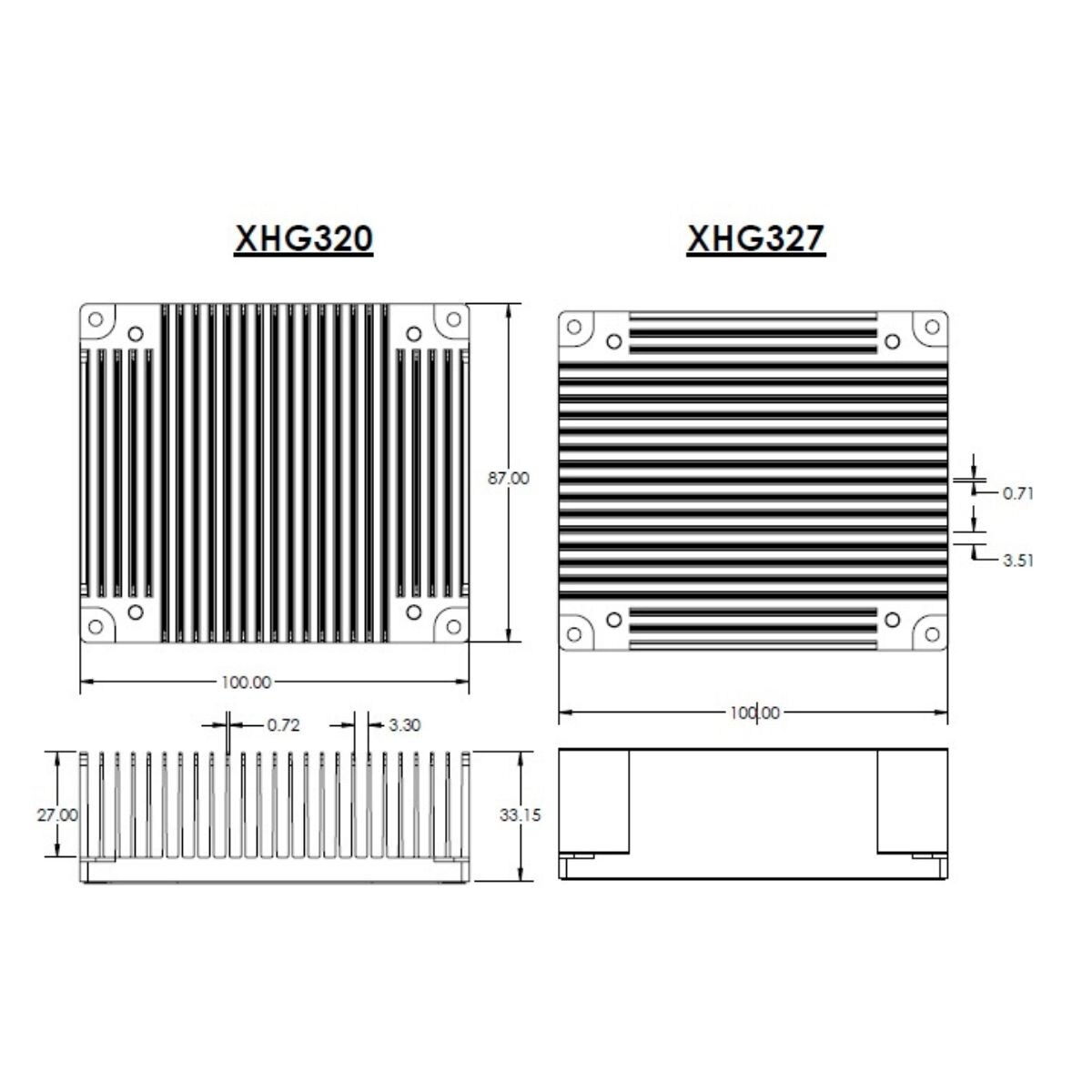

Connect Tech ThermiQ Rotated Fins Passive Heat Sink for NVIDIA Jetson AGX Orin Series. The heat sink at 60°C ambient needs an airflow of between 3 m/s and 4 m/s passing across it in order to maintain the module temperature around 80°C. Module temperature with airflow at 3 m/s (143 CFM) = 82.4°C. Module temperature with airflow at 4 m/s (190 CFM) = 78.5°C. 6063-T5 Aluminum Alloy with Black Anodize Type II finish. 100mm x 87mm x 33.15. MPN: XHG327
